QWD100ES

QWD100ES

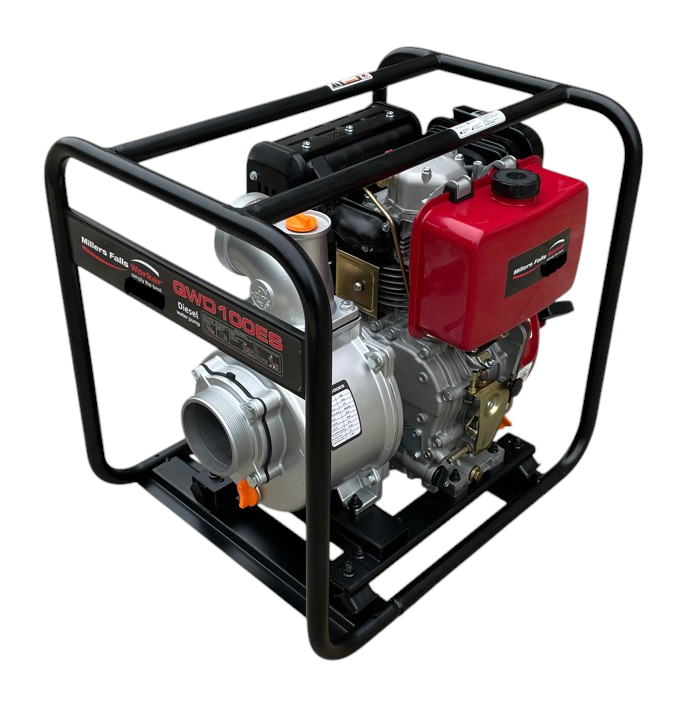

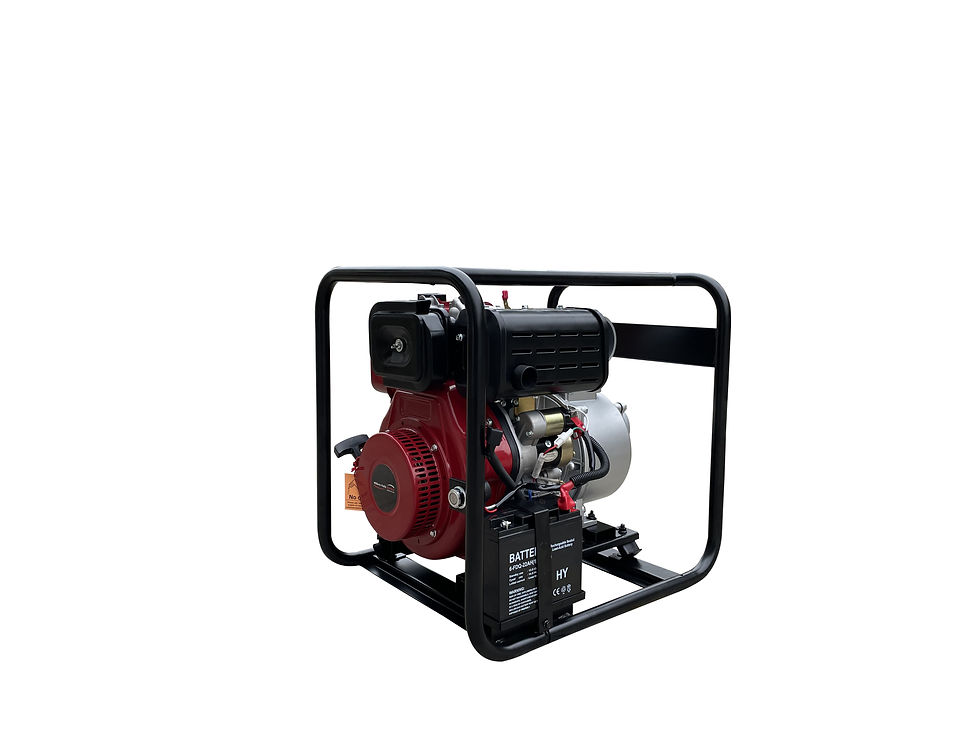

The QWD100ES is a high-capacity 4” diesel water transfer pump designed for demanding fluid transfer tasks. Powered by a 10HP diesel engine, it provides a maximum head of 32 meters and a capacity of 96m³/hr, ensuring efficient performance in large-scale operations. With a 100mm suction and discharge port, it offers optimal fluid intake and delivery. The pump features a self-priming time of less than 120 seconds for quick readiness. The air-cooled, 4-stroke diesel engine ensures reliable power, and with both electric and recoil start options and a 5.5L fuel tank, it is built for continuous operation in tough conditions.

Features:

• Suction: 100mm for reliable fluid intake.

• Discharge Port Dia: 4” (100mm) for efficient fluid delivery.

• Max Head: 32m, providing reliable pressure for water transfer.

• Max Capacity: 96m³/hr for high-volume fluid transfer.

• Max Suction Head: 8m, allowing for water intake from greater depths.

• Self-Priming Time: <120s for quick and efficient priming.

• Engine Type: Air-cooled, 4-stroke Diesel for durability and long-lasting performance.

• Engine Continuous Output: 10HP at 3600 RPM for high performance.

• Electric & Recoil Start: Battery included for easy starting.

• Engine Fuel Tank: 5.5L for extended operation.

• Packing Dimensions: [Packing dimensions not provided, but can be included once available].

• Weight: [Weight not provided, but can be included once available].

Specifications:

• Suction: 100mm

• Discharge Port Dia: 4” (100mm)

• Max Head: 32m

• Max Capacity: 96m³/hr

• Max Suction Head: 8m

• Self Priming Time: <120s

• Engine Type: Air-cooled, 4-stroke Diesel

• Engine Continuous Output: 10HP; 3600 RPM

• Engine Fuel Tank: 5.5L

• Weight: [Weight not provided]

• Packing Dimensions: [Packing dimensions not provided]
